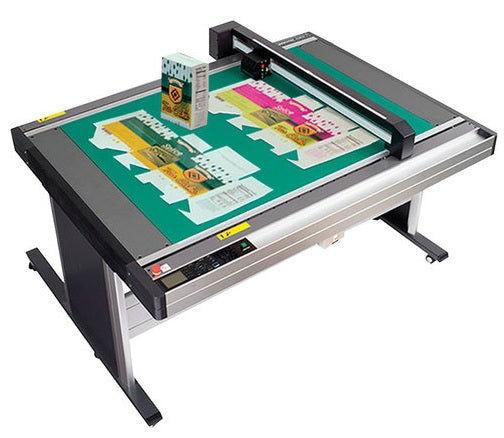

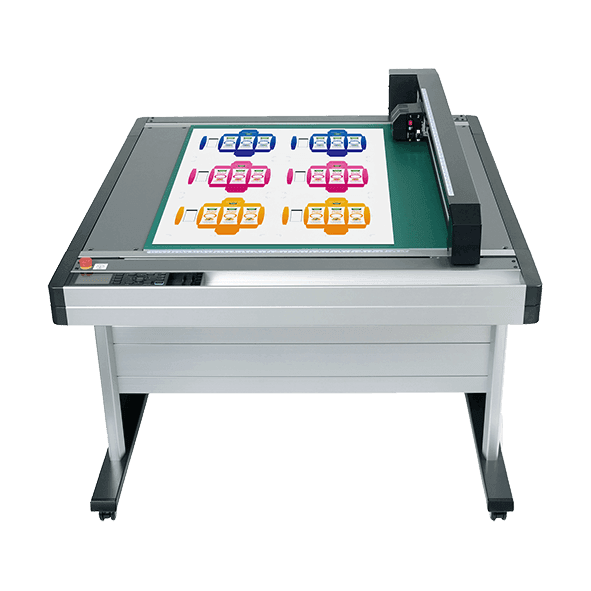

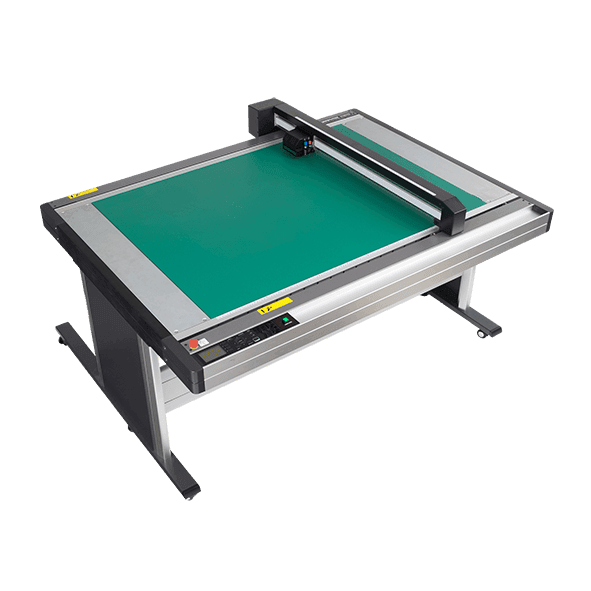

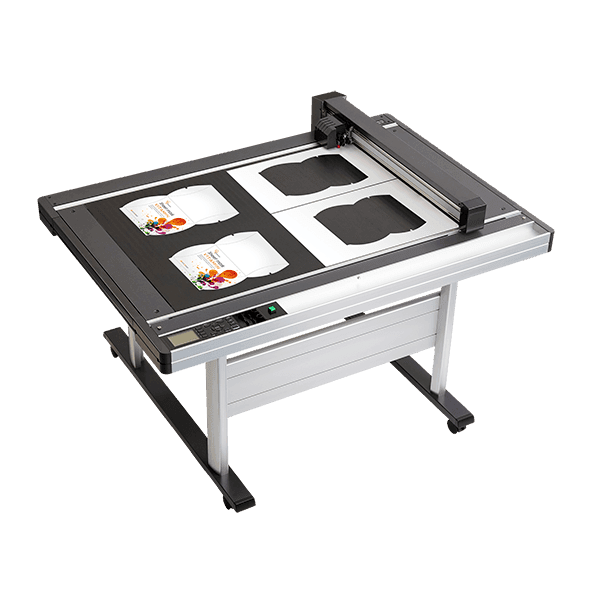

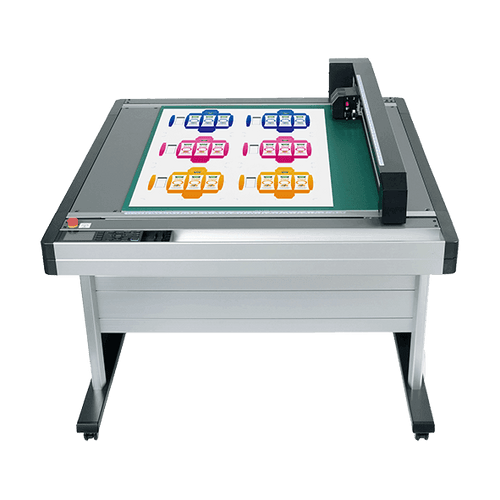

Graphtec FCX Series Flatbed Cutting Plotter

Name: Graphtec FCX Series Flatbed Cutting Plotter
Brand: Graphtec
Availability: InStock

1 5

Get a Quote Speak to a consultant 01948 800379

The FCX is the ultimate solution for prototyping and small to medium production runs of rigid materials.

FCX4000 Available In 3 Widths: 60cm | 120cm | 180cm
FCX2000 Available In 2 Widths: 50cm | 60cm
Max Cutting Speed: Up To 750mm/s
Cutting Force: Max 1kg
Networking Capabilities
Number Of Mountable Tools: 2
Roll Media Stocker
Interface: USB 2.0 Offline & USB 2.0 Cable
Buffer Memory: 2MB
Large Graphic Type LCD Control Panel
Warranty: 2 Years

Do you have a question ? Click here to ask us :-)

Finance options available

Want more info and/or to find out what's included : Click here to ask us

Brochure

Features & Specs

Request FREE Samples

Discuss ROI

Finance

Book a Demo

Brochures for Graphtec FCX Series Flatbed Cutting Plotter

Download Brochure Graphtec_Systems_Brochure_2022-V2.pdf

High Specification Print & Cut

DID YOU KNOW? WE OFFER FINANCE | On our Hardware products Click here for more information >

Perfect for

• Cardboard Packaging
• Packaging / POP
• Stickers
• Sandblasting Materials
• Garment Pattern
• Traffic Signage
• Industrial Signage
• Industrial Goods
• Window Display

Operational Performance:

• Creasing
• Scoring
• Perforation Cutting
• Half Cutting
• Die Cutting

FCX4000 50cm

Flat Bed Cutting Plotter

Bespoke packages available, ask us for best price

FCX4000

Includes

• Clear Protection Sheet
• Power Cable (3 Pin UK Plug)
• 2.9m USB Connection Cable
• DVD-ROM
• User Manual

Included Accessory Bundle
• Cutting Blade Holder (PHP33-CB15N-HS)
• Cutting Blade (CB15U)
• Loupe – For Checking Blade Length & Condition (PM-CT-001)
• Fibre-Tipped Pen Holder (PHP31-FIBER)
• Water-Based Fibre Tipped Pen (KF700-BK)
• Height Adjustment Tool

FCX4000 60cm

Flat Bed Cutting Plotter

Bespoke packages available, ask us for best price

FCX4000

Includes

• Clear Protection Sheet
• Power Cable (3 Pin UK Plug)
• 2.9m USB Connection Cable
• DVD-ROM
• User Manual

FCX2000 60cm

Flat Bed Cutting Plotter

Bespoke packages available, ask us for best price

FCX2000

Includes

• Matching Stand Including Lockable Castor Wheels
• Side Mounted Roll Media Stocker
• Media Catch Baskets (Front & Rear)
• Power Cable (3 Pin UK Plug)
• 2.9m USB Connection Cable
• DVD-ROM
• User Manual

FCX2000 120cm

Flat Bed Cutting Plotter

Bespoke packages available, ask us for best price

FCX2000

Includes

The FCX is the ultimate solution for prototyping and small production runs of rigid materials without the use of a cutting die.

Reduce media waste/ processing time with Graphtec’s precision cutting performance and dedicated software. Added offline (USB) operation enables users of all skill levels to easily process materials.

Precision cutting is achieved by enhancements to the rigidity of moving mechanism that deflection due to pressure during cutting, this has enabled new functions such as curved creasing & scoring lines.

Graphtec flatbed cutting plotters meet the wide variety of application used in prototyping and short production runs of packaging used in industrial materials.

Offline Operation

Using offline USB operation, even the most novice user is set to operate directly from the machine – without the use of a computer. USB operation enables operators of all skill levels to process various types of media for cutting. Having a designer create the plot file, it can be passed to users of any experience level to produce. Simply insert the USB and select the file from the intuitive new 3.7 inch Graphic LCD screen. The corresponding cutting conditions are automatically applied and the job is produced. Similarly, barcodes can be generated for print and cut applications. Cutting data is automatically selected from USB flash memory by scanning the generated barcode printed on the media to preform contour cutting. This reduces the potential for mistakes by the operator.

ARMS System

The FCX Series is equipped with Graphtec’s renowned ARMS system (Advanced Registration Mark Sensing) technology that allows users to accurately contour cut pre-printed graphics with ease. Auto-scanning of four point registration marks compensate for distortion in both X & Y directions to ensure precise cutting. Version 6.0 is packed with high productivity features such as ARMS Copy, One Point Compensation, Scan Start Position, and Expanded Cutting Area capability.

Dual Head Design

Dual head design delivers 500G and 1000G of force at speeds up to 400mm/s. Process materials thick or thin – including: Rubylith, Static Cling Film, Vinyl, Rubber Sandblast, Diamond Grade Reflective, Chipboard, E flute* and more. Three table sizes of 36”x 24”, 36” x 48”, and 36”x 72” are available utilizing enhanced vacuum suction media hold down.

Reverse Side Cutting & Creasing Method

Cutting and creasing of pre-printed packaging graphics is possible on the reverse (non-printed) side of the sheet. This method of reverse side cutting and creasing prevents damage and marking of the printed side. This option is currently available using Cutting Master 4 or Graphtec Pro Studio software.

Interface

Interface: Ethernet, USB2.0 and Serial RS-232C | Intuitive 3.7” LCD Screen | Digital Servo Motor USB Flash Memory for Offline Operation | Win & Mac Compatible

Simple to use

Saves time and money

Reliable and built to last
