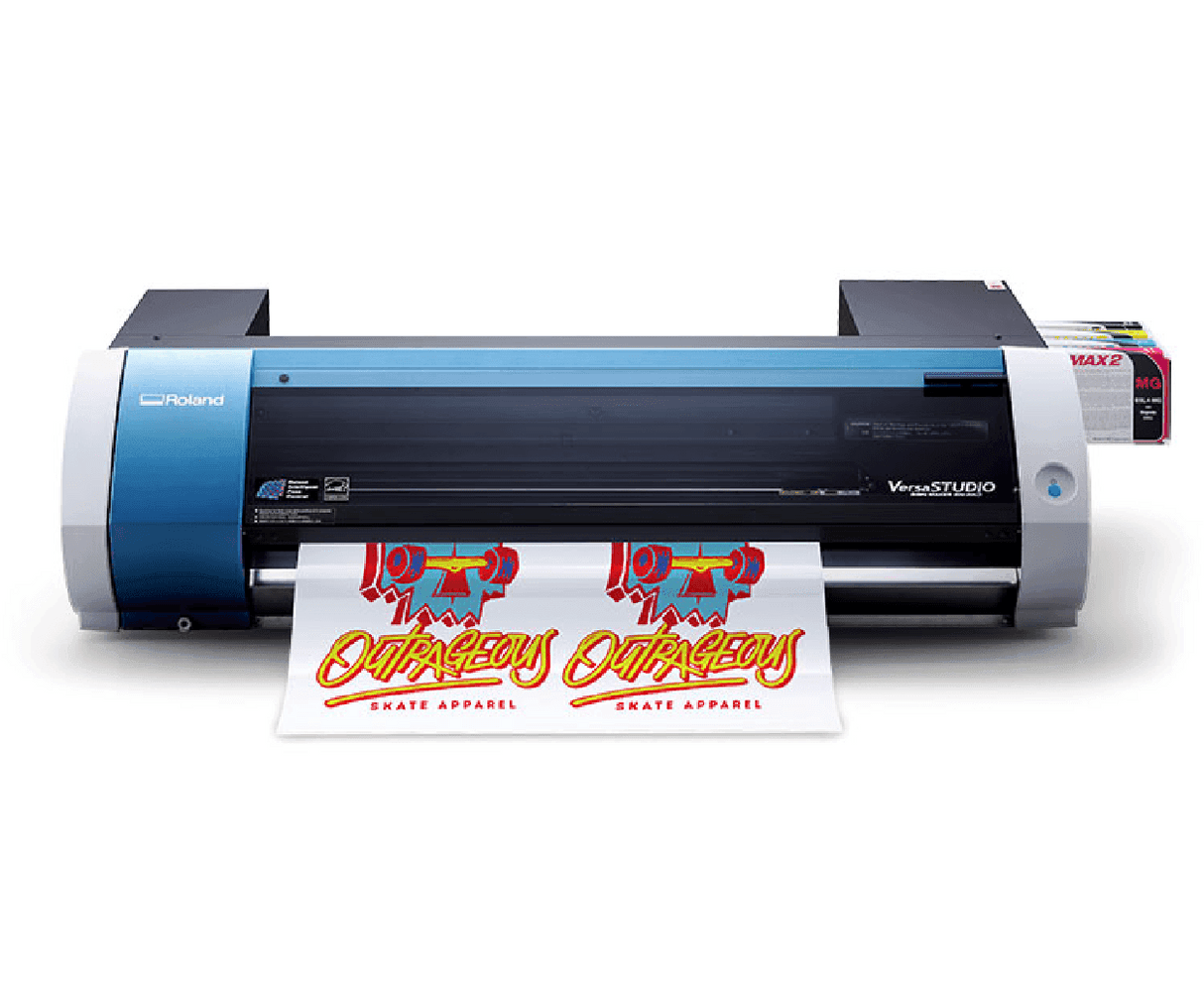

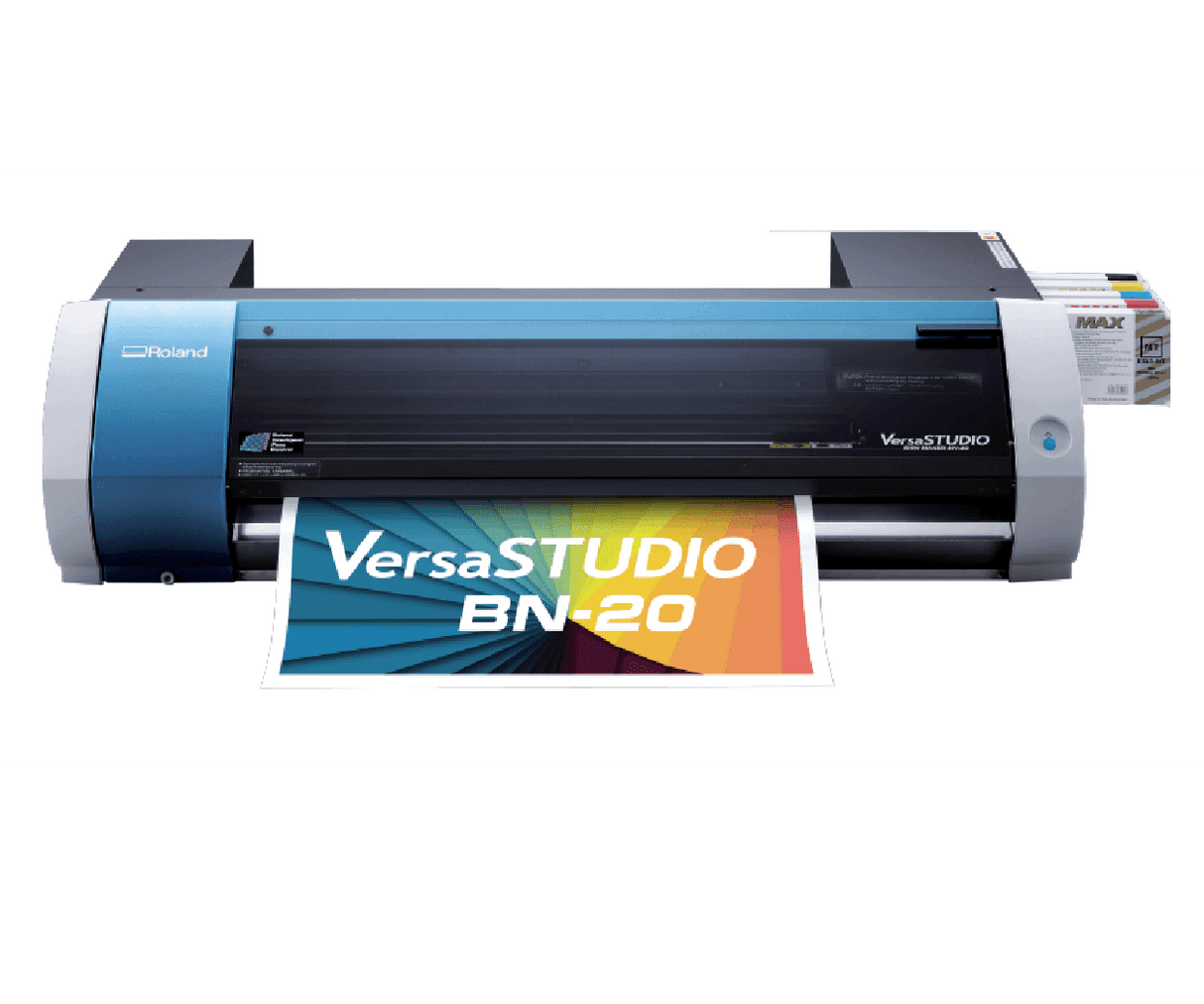

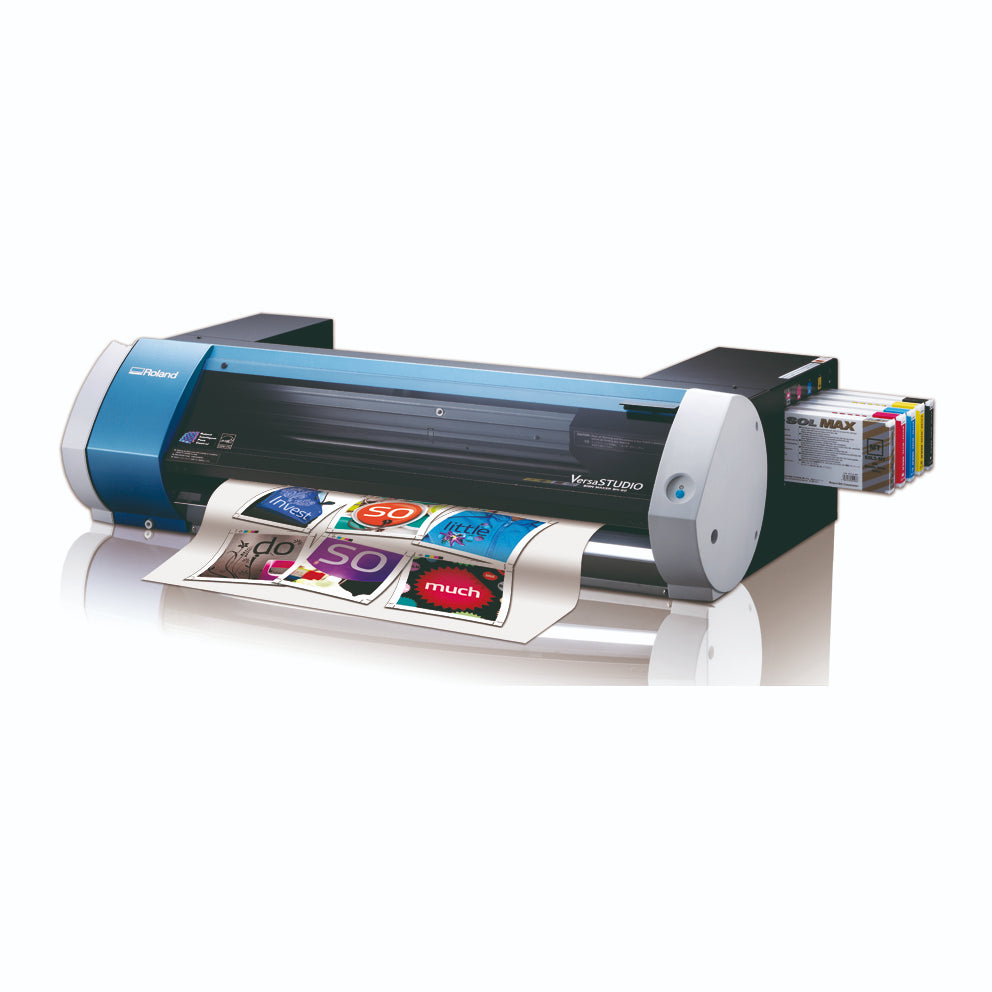

Roland BN Series

Roland’s Eco-Sol MAX ink offers fast drying time, high density, a wide colour gamut, rugged scratch resistance, a low cost per square metre and broad media support. The BN-20 and BN-20A can be set up in for printing both standard and luxury items.
ECO-SOL MAX inks are GREENGUARD Gold certified, to meet some of the world’s most rigorous standards for use in schools and healthcare environments.

Combined with 300g downward force cutting capability, the integrated contour cutting of the BN-20 Series is consistent and virtually eliminates common problems inherent in drag knife technology with simple up/down electronic controls. Ingenious cutting carriage technology prevents bounce against the media if the force is set too high for the substrate.

Built with Roland DG’s well known quality standards for reliability, the BN-20 Series features gold-plated heads to reduce static and prevent clogging and a patent-pending wiper system to decrease wear and tear on the print head and prolong its life by reducing buildup. A patent-pending automated Ink Circulation System* reduces waste, for dramatically lower running costs while ensuring exceptional image quality over the long term.
*BN-20 only

A simplified media feed system automatically aligns roll media for printing. This intuitive system detects and adjusts the pinch roll wheels to the width of the installed media, ensuring proper placement and tracking. This solution supports roll media from 152 mm up to 508 mm in width and weighing up to 5.8 kg.

An easy-to-use design package, R-Works allows users to import photos and images for insertion into design layouts for creating custom print and cut graphics. R-Works also includes a vector art library of stock designs.

Roland VersaWorks 6 expands your print capabilities and maximises the power of your Roland BN 20 devices with the latest features to enhance the world’s most popular RIP software.
• HARLEQUIN RIP dual-core engine and native 64-bit processing – effective processing of PDFs with shadows and transparencies
• Icon-based interface with drag-and-drop functionality
• Five print queues and the ability to save and store unlimited queue settings
• Special Color Plate Generation – auto-generate White, Gloss and other ink layers
• Built-in Pantone and Roland Color spot colour libraries
• All the advanced and ease-of-use features of VersaWorks

Built to provide years of reliable service – even in the most demanding print environments – the BN-20 and BN-20A include a one-year Original Roland DG Care warranty*.
Roland DG has earned a reputation for long-lasting, high-performance devices, backed by first-rate customer service. This support includes expert technical assistance, videos and free Roland software updates for the lifetime of the machine.
Roland DG’s international ISO certifications are your assurance of quality products and service.
*Terms and conditions apply. See warranty page for details.

Width 1009mm
Height 293mm
Depth 582mm
Weight 36kg
Max Print Width 48cm
Power Consumption - During operation: 90W, sleep mode: 5.5W
Printing Speed 10 to 150mm/s
Ink - CMYK
Ink Type - Roland ECO-SOL MAX 3
