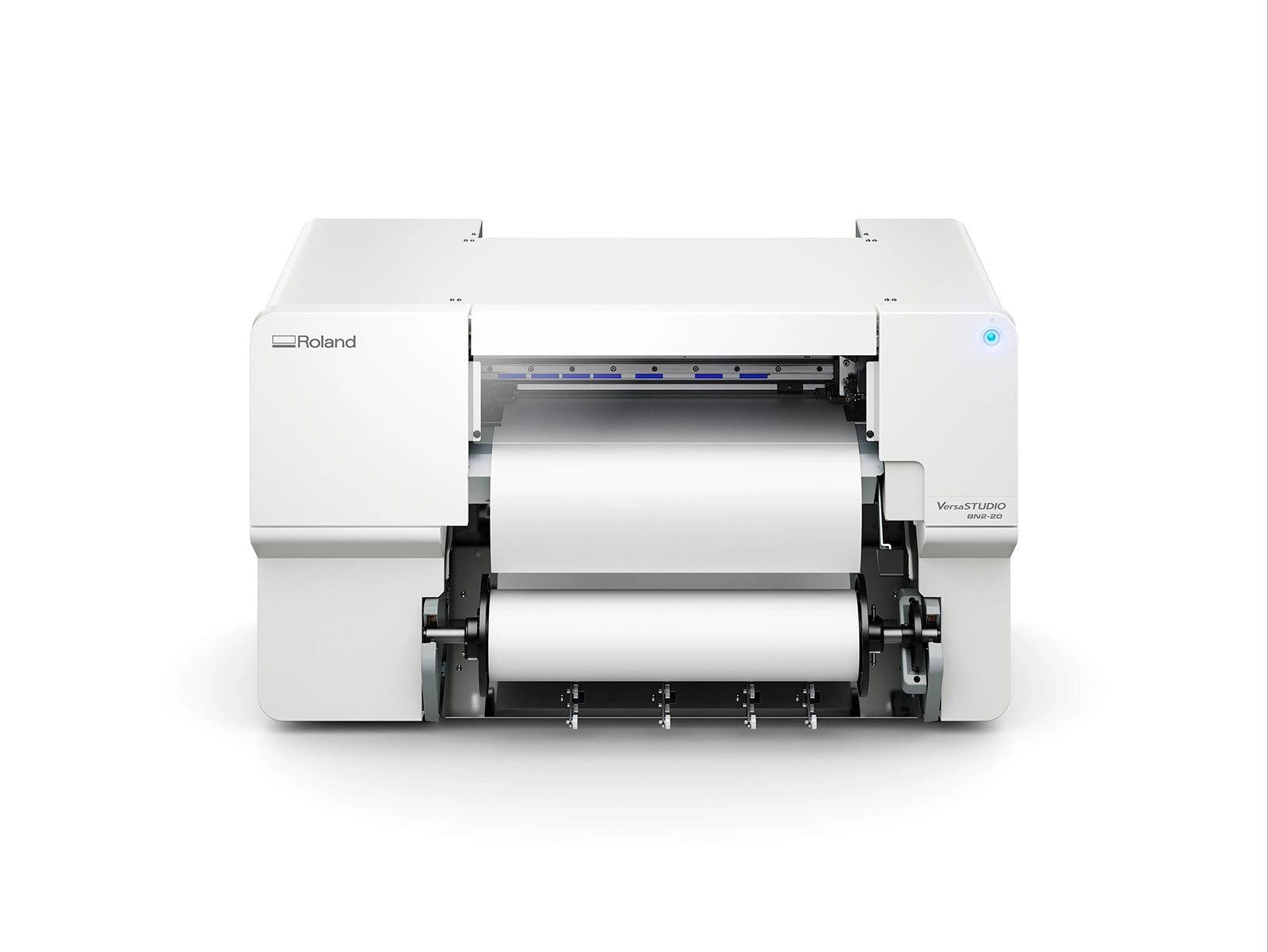

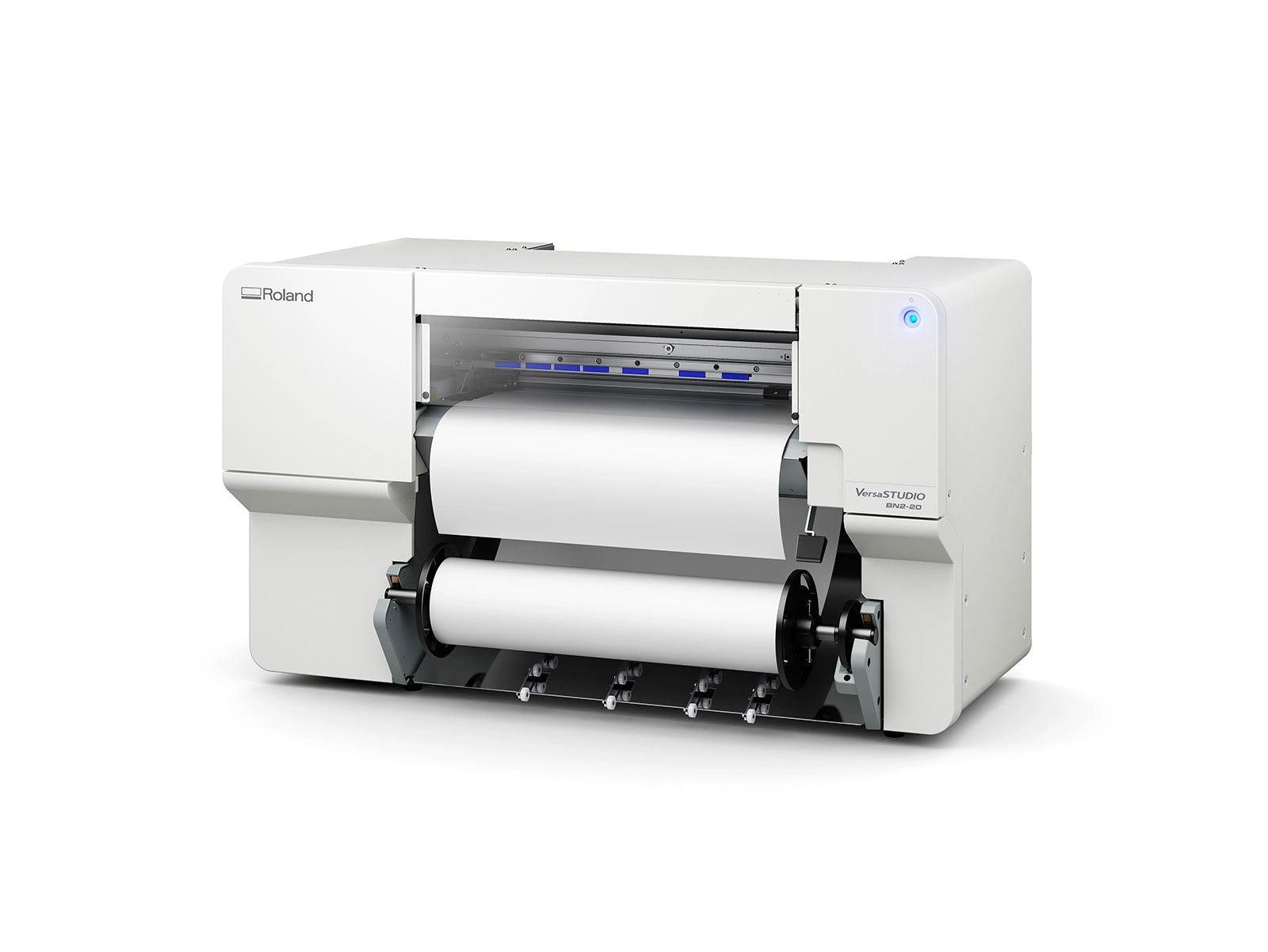

Roland BN2-20 Series

Roland BN2-20 Series

1 10
Get a Quote Speak to a consultant 01948 800379

Desktop Print & Cut

Perfect for stickers, labels, t-shirts, banners, canvas, posters, signage and much more !

2 models available : Roland BN2-20A & BN2-20A

It's Packed with more lots more features than the BN-20, ask us for more info.

  • Desktop Print & Cut
  • High image quality - 1440 DPI
  • Front loading - Media up to 515mm
  • Printable/Cutting width: up to 480mm
  • New heater and dryer system
  • New BN2-20 utility app
  • White Option (BN2-20 only)

It's Compact, easy to use & VERY reliable

Do you have a question ?  Click here to ask us :-)

Finance options available

Want more info and/or to find out what's included : Click here to ask us
Brochure Features & Specs Request FREE Samples Discuss ROI Finance Book a Demo

Brochures for Roland BN2-20 Series

High Specification Print & Cut

DID YOU KNOW? WE OFFER FINANCE | On our Hardware products Click here for more information >

Perfect for

  • Stickers & Labels
  • Decals
  • Clothing Decoration
  • POS & POP
  • Posters
  • Window Graphics
  • Glassware
  • Home Décor
  • Gifting

What can it print onto?

  • An extensive range of flexible materials
  • Self adhesive vinyl
  • Canvas
  • Contra Vision
  • Pop-up and roll-up
  • Paper
  • Static Cling
  • Heat Transfer Vinyl
  • Wall Papers and much more!

Unsure if it will print your material / product? Click here and ask us!

BN2-20A / 500mm
BN2-20A 500mm
20" Print & Cut
Bespoke packages available, ask us for best price

BN2-20A

Includes

  • Blade & Holder
  • Utility software
  • RIP Software (Roland Versaworks)
  • 1 Year Roland Bronze Warranty
BN2-20 / 500mm
BN2-20 500mm
20" Print & Cut - with White Ink option
Bespoke packages available, ask us for best price

BN2-20

Includes

  • Blade & Holder
  • Utility software
  • RIP Software (Versaworks)
  • 1 Year Roland Bronze Warranty

Print and Cut in One Integrated Workflow

The Roland VersaSTUDIO BN2-20 Series streamlines the production process by automatically contour cutting its printed output and eliminating the need to reload and reposition graphics in a separate cutting device. For laminated graphics, our four-point optical registration system allows users to remove prints, laminate and reload them for cutting. automatically realigns the cutting path to avoid skewing and distortion.

Roland’s Eco-Sol MAX 2/3 ink offers fast drying times, high density, a wide colour gamut, rugged scratch resistance, a low cost per square metre and broad media support. The BN2-20 and BN2-20A can be set up in for printing both standard and luxury items.ECO-SOL MAX 2/3 inks are GREENGUARD Gold certified, to meet some of the world’s most rigorous standards for use in schools and healthcare environments.
Combined with 500g downward force cutting capability, the integrated contour cutting of the BN2-20 Series is consistent and virtually eliminates common problems inherent in drag knife technology with simple up/down electronic controls. Ingenious cutting carriage technology prevents bounce against the media if the force is set too high for the substrate.
Built with Roland DG’s well known quality standards for reliability, the BN2-20 Series features gold-plated heads to reduce static and prevent clogging and a patent-pending wiper system to decrease wear and tear on the print head and prolong its life by reducing build-up. A patent-pending automated Ink Circulation System* reduces waste, for dramatically lower running costs while ensuring exceptional image quality over the long term.
A simplified media feed system automatically aligns roll media for printing. This intuitive system detects and adjusts the pinch roll wheels to the width of the installed media, ensuring proper placement and tracking. This solution supports roll media from 152 mm up to 508 mm in width and weighing up to 5.8 kg.
Roland VersaWorks 6 expands your print capabilities and maximises the power of your Roland BN2-20 devices with the latest features to enhance the world’s most popular RIP software.
• HARLEQUIN RIP dual-core engine and native 64-bit processing – effective processing of PDFs with shadows and transparencies
• Icon-based interface with drag-and-drop functionality
• Five print queues and the ability to save and store unlimited queue settings
• Special Colour Plate Generation – auto-generate White, Gloss and other ink layers
• Built-in Pantone and Roland Colour spot colour libraries
• All the advanced and ease-of-use features of VersaWorks
Built to provide years of reliable service – even in the most demanding print environments – the BN2-20 and BN2-20A include a one-year Original Roland DG Care warranty*.
Roland DG has earned a reputation for long-lasting, high-performance devices, backed by first-rate customer service. This support includes expert technical assistance, videos and free Roland software updates for the lifetime of the machine.
Roland DG’s international ISO certifications are your assurance of quality products and service.
*Terms and conditions apply. See warranty page for details.
Width - 1069mm
Height - 622mm
Depth - 617mm
Weight - 62kg
Max Print Width - 48cm
Power Consumption - During operation: 185W, sleep mode: 27W
Printing Speed - 10 to 150mm/s
Ink - CMYK
Ink Type - Roland ECO-SOL MAX 2/3

Why the Roland BN2 Series

  • Very easy to use
  • Compact
  • Very reliable (Roland are one of the leading brands in the UK!)
  • High print quality
  • Low running costs
  • Low on-going maintenance & repair costs
